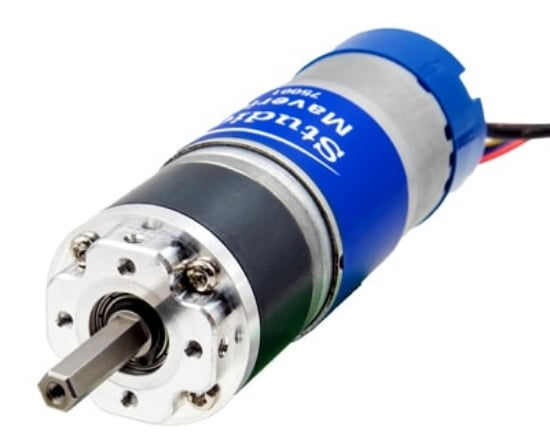

Maverick Hex Planetary Gearbox Motor w/Encoder
The Maverick Hex Planetary Gearbox Motor features a high-torque planetary gearbox that delivers stable and reliable power output, making it ideal for robotics, mobile platforms, and a wide range of automation applications. The motor is equipped with a 6 mm hex output shaft, allowing quick and secure integration with Studica-compatible mechanisms and other hex drive components. An integrated encoder provides precise angle and position feedback for accurate motion control. The series is available in five gear ratios—19.2:1, 26.9:1, 50.9:1, 71.2:1, and 99.5:1—allowing users to select the optimal combination of torque and speed based on their specific mechanical requirements. With high torque, precise control, and excellent mechanical compatibility, the Maverick Hex Planetary Gearbox Motor provides a professional and reliable solution for demanding robotic and automation systems.
Specifications
- Rated Voltage: 12 V
- No-Load Speed: 318 RPM (19.2:1), 227 RPM (26.9:1), 120 RPM (50.9:1), 86 RPM (71.2:1), 62 RPM (99.5:1)
- Stall Torque: 24.7 kg-cm (19.2:1), 34.6 kg-cm (26.9:1), 65.4 kg-cm (50.9:1), 91.5 kg-cm (71.2:1), 127.9 kg-cm (99.5:1)
- Stall Current: 11 A
- Resolution: 0.781° (19.2:1), 0.558° (26.9:1), 0.295° (50.9:1), 0.211° (71.2:1), 0.151° (99.5:1)
- Dimensions (D x L): 37 x 131 mm
